Route cards – the fastest way to the triggered detector
The moment your fire alarm system goes off, our route cards lead the fire brigade straight to the right detector – card by card, detector zone by detector zone.
- DIN 14675
- VDE 0833-2
- DIN EN ISO 7010
- ASR A1.3
When route cards are required
Route cards are generally required whenever a building must have a fire alarm system under building law. They are kept at the fire alarm panel and show the fire brigade, per detector zone, the optimal route to the triggered detector.
In complex buildings such as hospitals, schools, shopping centres or industrial plants, fast orientation decides the success of the deployment.

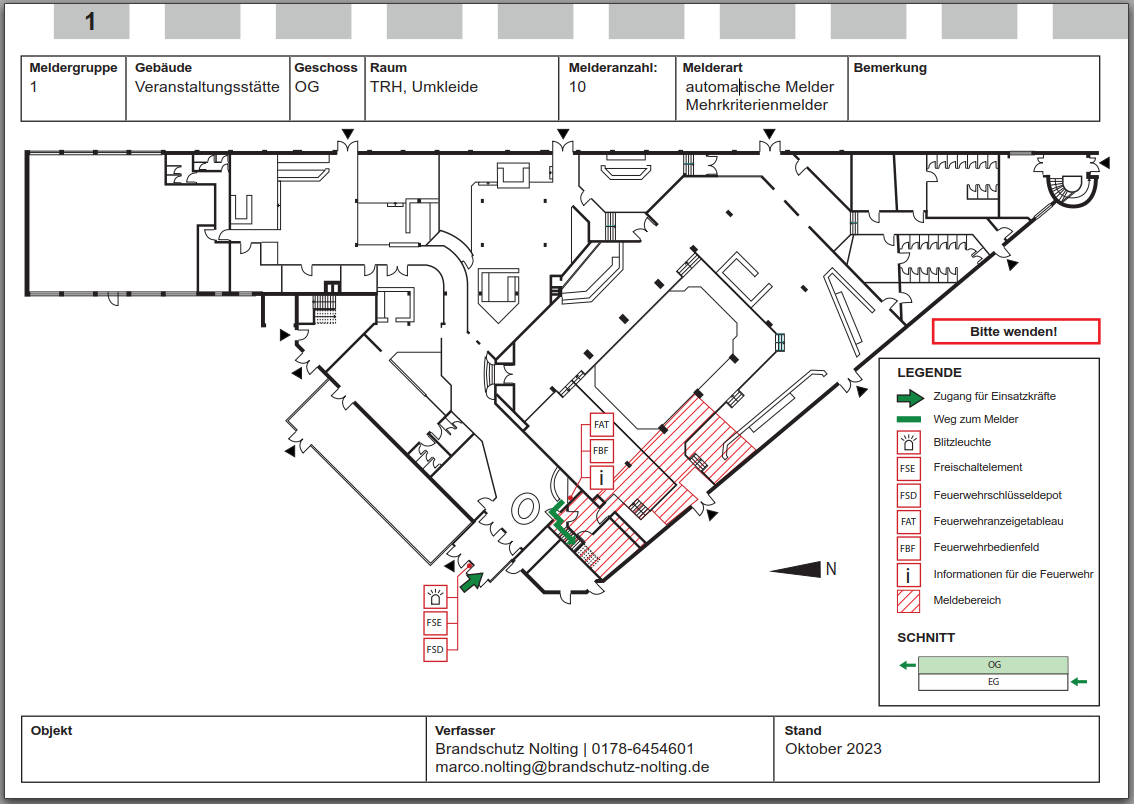

- Front: overview plan with the panel’s location
- Back: detail plan with the route to the detector
- Unambiguous numbering of all detector zones
- Ongoing updates after structural changes
Structure of a standard-compliant route card
- Property information
- Name and address of the property plus details of the building or facility.
- Site plan
- Overview of the building’s position on the site – including access roads and entrances for the fire brigade.
- Detail plan
- Floor-accurate view with the exact positions of the alarm panel, manual call points and automatic detectors.
- Detector zones
- Numbered detector zones so the triggered alarm can be located instantly.
- Routes
- The designated, safe and fastest way from the panel to the respective detector.
- Additional safety information
- On request: extinguishers, wall hydrants and main shut-offs for gas, water and electricity.
Our route cards meet the requirements of DIN 14675, VDE 0833-2, DIN EN ISO 7010 and ASR A1.3 – and can be coordinated directly with your fire service and the installer of the alarm system.
